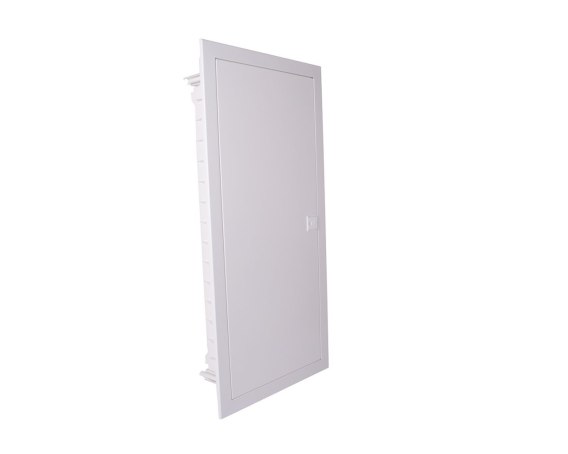

NOARK Rozdzielnica podtynkowa 5x12 drzwi metalowe (107262)

NOARK 5x12 flush-mounted distributor

PMF installation enclosures are designed primarily for domestic applications. Their design is suitable for flush mounting. The double mounting system also allows them to be used in hollow walls. The adjustable height of the front metal frame makes it possible to compensate for imperfections in the wall surface. The enclosures are available in versions from 12 to 60 modules with 12 (+2) modules per row. The degree of protection is IP40, mechanical impact resistance IK06. Delivery includes enclosure, metal door, mounting frame with TH-35 mm rails, N + PE terminals, front cover with cut-outs for apparatus, cap, mounting components and instructions.

Specifications:

Depth: 88
Width expressed in number of modules: 12
DIN rail: YES
With mounting plate: NO
Mounting method: For hollow walls
Transparent cover/door: NO
With lock: NO
Housing material: Steel
Colour: White
RAL number: 9016
Extendable: NO
Degree of protection (IP): IP40
Width: 346
Built-in depth: 88
Cover design: Closed
Height: 842
Compliant with EMC directive; NO
Number of rows: 5
Type of cover: Door
