Felicity Battery Combiner Box 3 in-3 out BTCB0303-120 80A, 125V

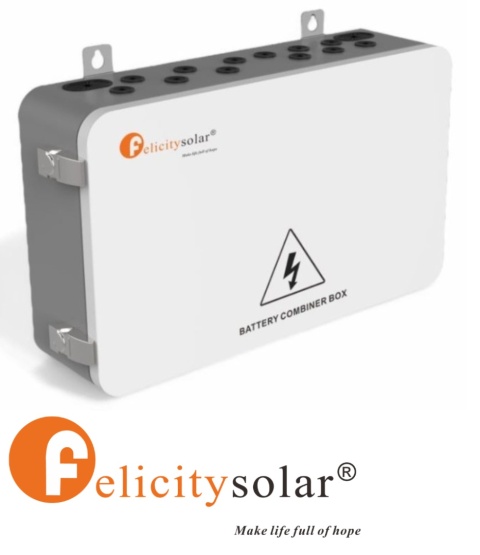

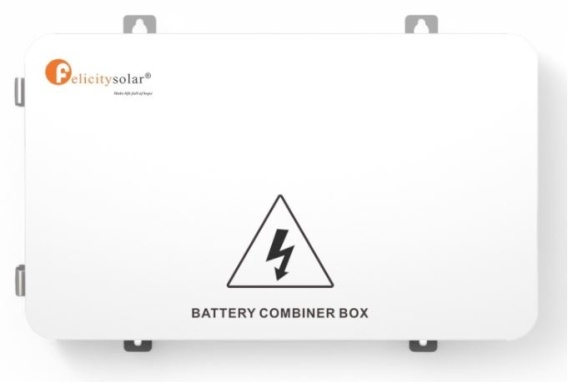

Felicity BTCB0303-120 to Combiner Box designed to connect three DC sources (e.g. PV or batteries' strings) into one output to the inverter or energy warehouse. The device has a solid metal housing with small dimensions (516 × 300 × 136mm) and a weight of about 10kg, which facilitates assembly and integration in typical home installations and small solar systems.

Thanks to the degree of protection of IP21, the device is protected against the penetration of larger solid elements and condensation, which is sufficient in dry, internal assembly environments.

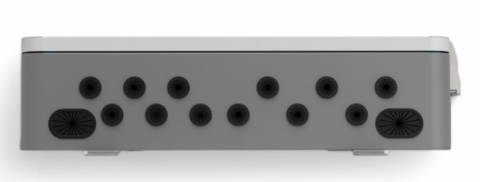

Each of the three entrances has a separate safety switch, which allows you to isolate individual strings without having to interfere with the entire installation. In addition, the Combiner Box protects against electrical overload, which improves the reliability and safety of the installation.

Jesteśmy autoryzowanym dystrybutorem Felicitysolar w Polsce

Installation Guide
