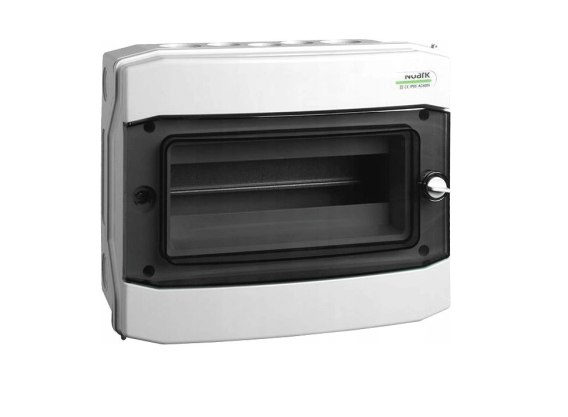

NOARK Plastic N/T hermetic switchboard 1x12M PHS IP65 12T 1000V (101494)
The Symbol :
NRK-101494
96.28
96.28
96.28
| Shipping within | 48 hours |
| Shipping price | 30 |
| The Availability Of |
|
Order by phone: +48 720829292
Technical specifications:
Manufacturer: NOARK
Product color: light gray
Commercial designation: 101494
Type: surface mounted waterproof switchboards
Number of rows: 1
TH35 (DIN) rail: 1x12
PE/N terminals: yes
Door type: transparent tinted
Number of doors: 1
Lock type: plastic lock
Sealable: yes

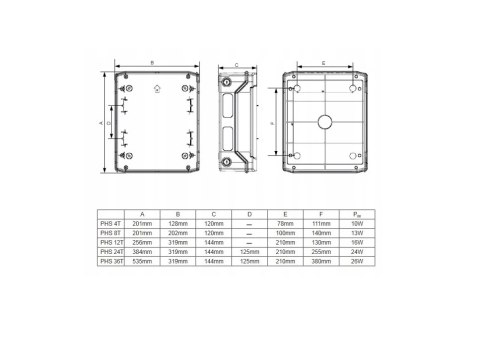

Dimensions: 319 (B) × 259 (A) × 144 (C) mm; 210 (E) × 130 (F) mm
Material type: Acrylonitrile/styrene/acrylate (ASA) halogen-free
Number of 18mm modules: 12
Rated current In: 63A
Rated insulation voltage Ui: 690V AC / 1000V DC
Protection class against electric shock: II
Degree of protection: IP65
Impact resistance: IK08
UV resistance: yes
Operating temperature: -25°C ÷ +60°C
Certifications: CE, RoHS
Standards: EN 60670, EN 62208
