HOYMILES Inwerter hybrydowy HYS-5.0LV-EUG1 (1-fazowy)

The HYS-LV series are high-efficiency, single-phase hybrid inverters with the highest reliability in power classes from 3 to 6 kW.  The intelligent EMS function supports self-consumption mode, economy mode and emergency mode in multi-scenario applications.  Monitoring management via the S-Miles Cloud service allows users to remotely diagnose and track system performance over time, maximizing total solar production and battery utilization.

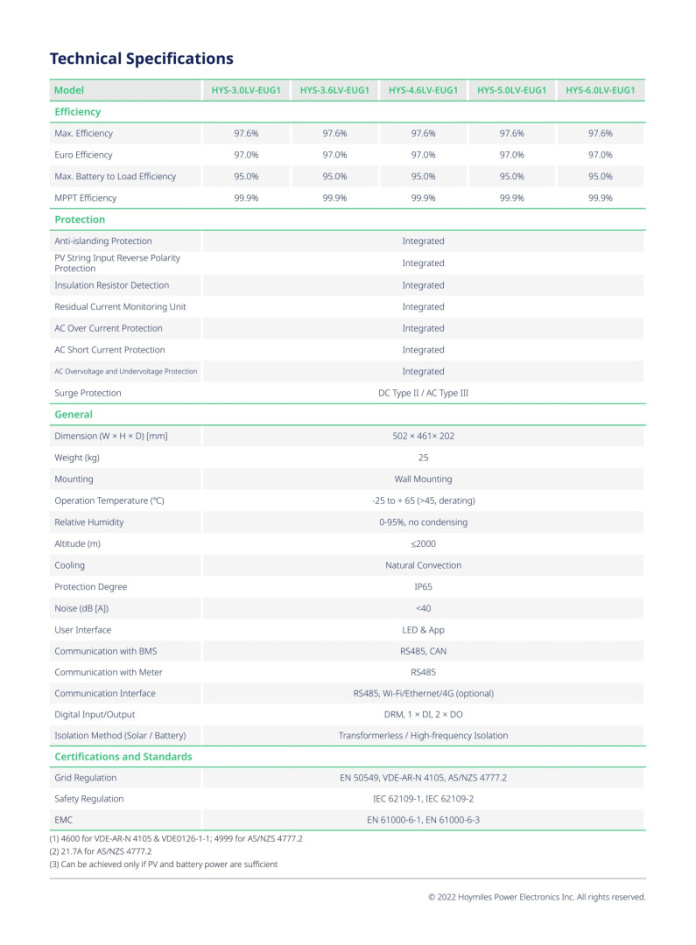

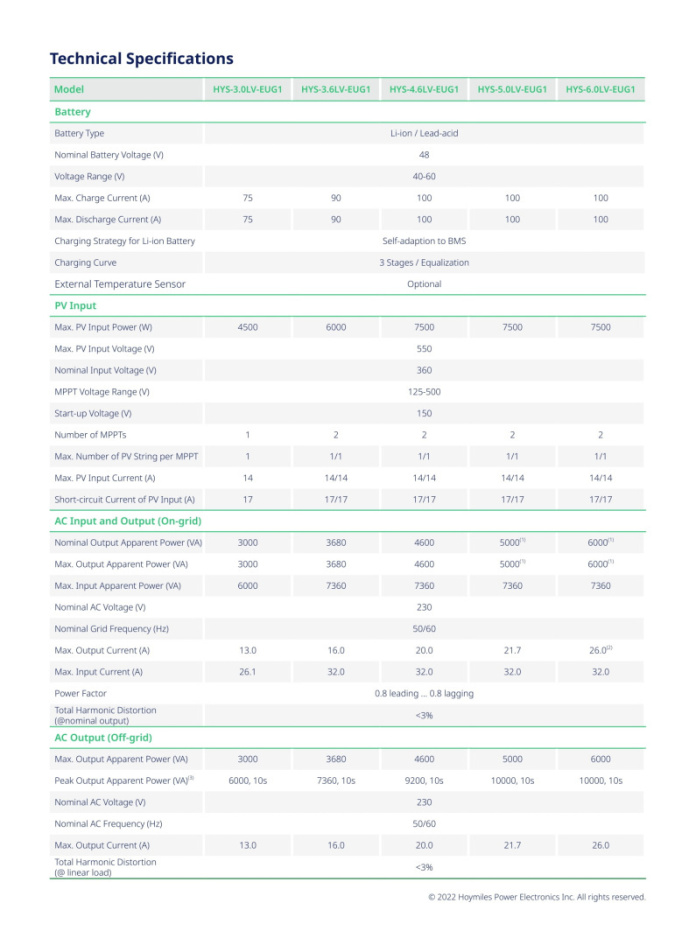

    Max efficiency: 97.6%; efficiency by European standards: 97.0%
    Dual maximum power point tracking (MPPT) circuit, up to 14 A of MPPT current
    DC/AC ratio of up to 150% Ultralight design for easy installation and space saving
    Supports direct current (DC) and alternating current (AC) coupled systems
    Integrated EMS with self-consumption mode, economy mode, emergency mode for multi-scenario applications
    Built-in volt-free contact that can be flexibly configured for ground fault alarm, load control or generator control
    Remote monitoring via S-Miles Cloud service

Downloads:

Datasheet
Terms of Warranty
Quick installation guide
User Manual
List of compatible batteries
Certificate EN IEC 61000-6-1: 2019
Certificate of conformity EN62109-1
IEC62477-1 Certificate of Compliance
Certificate EN 50549
